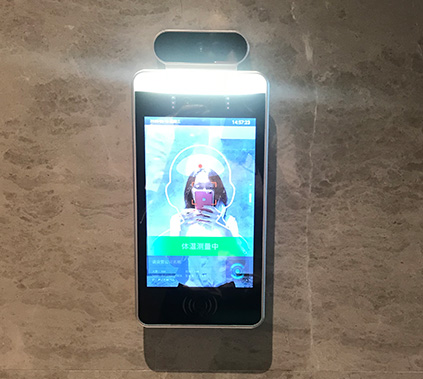

Real-time temperature measurement response, real-time data analysis, improve temperature measurement efficiency. The device satisfies face recognition, QR code recognition(optional), ID card recognition(Optional), and swipe card recognition.
- Adopt high-performance intelligent processor, face recongnition algorithm based on deep learning, greatly improve the rate of face capture;
- Support real-time temperature detection and high temperature alarm;
- Support face optimization, face enhancement and face exposure to improve imaging quality;
- Support multi-face recognition, multi-ethnic recognition, maximum face recognition mode, face recognition accuracy rate is at the forefront of the industry;
- Support multiple recognition methods such as swiping face and swiping card, swiping face or swiping card, face only, swi[ing card only;
- Support secondary development:open interface for face recognition algorithm manufacturers and software vendors to add value to applications.
Campus Community, Industrial Park,Chaneel Gate, Eantrance Guard, School, Office, Airport, Hosptital, Hotel, Community, Transportation, Supermarket, Public Area
|
Hardware & Technical Specifications |
|
|
Display |
8 inches |
|
Overall Size |
284(L)*140(W)*29(H)mm |
|
Processor |
High-performance 32-bit 4-core ARM chip |
|
Flash |
8GB |
|
Measurement mode |
Thermographic temperature measurement |
|
Measuring Distance |
0.3m-0.8m(recommended 0.5m) |
|
Communication Method |
TTL |
|
Temperature Measurement Accuracy |
±0.2℃~±0.5℃ |
|
TT Operating Temperature |
-20-65℃ for |
|
Storage Temperature |
-40-65℃ for |
|
Power Supply |
3-5V |
|
Electric Current |
2mA |
|
Baud Rate |
9600/115200 |
|
Default Automatic Output Frequency |
14Hz |
|
Wavelength Range |
8-14µm |
|
Temperature Output |
Real-time parallel output |
|
Temparature Correction |
Manual and automatic calibration |
|
Alarm Threshold |
Adjustable |
|
Wiegand Interface |
Support Wiegand 26 Wiegand 34 |
|
Other Interface |
232; TTL; WIFI; RJ45; USB |
|
Style |
Symmetrical design, can be hang horizontally and vertically |
|
Camera
|
200w: USB connector, monocular wide dynamic, anti-glare |
|
Ind Aperture 2.8, focal length 1.6mm, field angle 130°TV distortion<-5%, photosensitive area size 1/5-inch |
|
|
Pixel:According to customer requirements,≥ 2 million pixels |
|
|
Assembly angle: flat out |
|
|
Image Sensor |
6mm focal length, F2.4 aperture |
|
Fill Light |
LED:white light, RGB camera fill light, a control interface in SDK |
|
NTR:850m infrared LED light, IR camera fill light source, with control interface in SDK |
|
|
Operation System |
Android 5.1.1 or above |
|
Input Power |
DC12V 2A |
|
Backlight Recognition Iilluminance |
<6000Lux |
|
Effective Recognition Distance |
0.5-4m |
|
Working Environment |
Indoor and outdoor(with rainproof frame),10-90%(non-condensing) |
|
Operating Temperature |
-20℃~+ 65℃ |
|
Card Reading Speed |
0.2S |
|
Matching |
Matching |
|
ID Card Reader |
Support second-generation ID card recognition function, with control interface in SDK |
|
LTE Function |
Support 4G full Netcom Internet access function |
