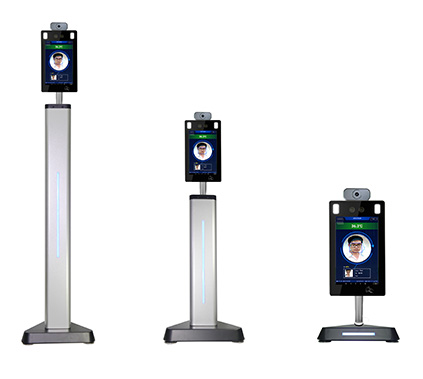

Face recognition Camera with Thermal Imaging Temperature Measurement

Pass management vertical module of temperature measurement and face recognition uses High-performance 32-bit 4-core ARM chip. High-performance hardware platform, equipped with industrial-grade binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identification.

Feature Applications Specifications Download

Feature

* The Integrated design is adopted to ensure the safety and reliability of the equipment, and provide guarantee for the accuracy of identity verification;

* Support witness card identification and stranger warning function;

* The face recognition all-in-one machine supports personalized customization;

* Support cloud and local identification

* Support to adjust the recognition distance;

* Equipped with offline and online 10,000 face database to support massive historical record storage;

* Fast and efficient, with high recognition accuracy and fast verification speed;

* Not-contact identification is completely different from fingerprints and punching methods, frees hands, and does not require special cooperation to havea a strong sense of experience;

Applications

Campus community, Industrial Park, Chaneel gate, Eantrance guard, School, Office, Airport, Hospital, Hotel, Community, Transportation, Supermarket, Public Area

Specifications

Hardware & Technical Specifications
Display	8 inches
Overall Size	284(L)140(W)29(H)mm
Processor	High-performance 32-bit 4-core ARM chip
Flash	8GB
Measurement mode	Thermographic temperature measurement
Measuring Distance	0.3m-0.8m(recommended 0.5m)
Communication Method	TTL
Temperature Measurement Accuracy	±0.2℃~±0.5℃
TT Operating Temperature	-20-65℃ for
Storage Temperature	-40-65℃ for
Power Supply	3-5V
Electric Current	2mA
Baud Rate	9600/115200
Default Automatic Output Frequency	14Hz
Wavelength Range	8-14µm
Temperature Output	Real-time parallel output
Temparature Correction	Manual and automatic calibration
Alarm Threshold	Adjustable
Wiegand Interface	Support Wiegand 26 Wiegand 34
Other Interface	232; TTL; WIFI; RJ45; USB
Style	Symmetrical design, can be hang horizontally and vertically
Camera	200w: USB connector, monocular wide dynamic, anti-glare
	Ind Aperture 2.8, focal length 1.6mm, field angle 130°TV distortion<-5%, photosensitive area size 1/5-inch
	Pixel:According to customer requirements,≥ 2 million pixels
	Assembly angle: flat out
Image Sensor	6mm focal length, F2.4 aperture
Fill Light	LED:white light, RGB camera fill light, a control interface in SDK
Fill Light	NTR:850m infrared LED light, IR camera fill light source, with control interface in SDK
Operation System	Android 5.1.1 or above
Input Power	DC12V 2A
Backlight Recognition Iilluminance	<6000Lux
Effective Recognition Distance	0.5-4m
Working Environment	Indoor and outdoor(with rainproof frame),10-90%(non-condensing)
Operating Temperature	-20℃~+ 65℃
Card Reading Speed	0.2S
Matching	Matching
ID Card Reader	Support second-generation ID card recognition function, with control interface in SDK
LTE Function	Support 4G full Netcom Internet access function
