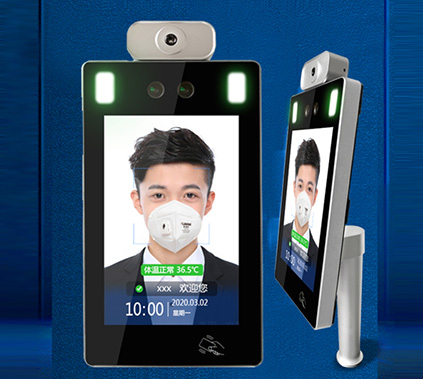

8 Inches Ultra-thin Thermal Imaging Temperature Measurement
8 Inches Ultra-thin Thermal Imaging Temperature Measurement

 High-performance hardware platform, equipped with industrial-grade binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identification. It also supports expansion of various peripherals such as ID card readers, fingerprint readers, etc.

Feature

* The integrated design is adopted to ensure the safety and reliabiity of the equipment, and provide guarantee for the accuracy of identity verification;

* Support witness card identification and stranger warning function;

* The face recognition all-in-one machine supports personalized customization;

* Support cloud and local identification;

* Support to adjust the recognition distance;

* Equipped with offline and online 10,000 face database to support massive historical record storage;

* Support USB disk download and self-service report;

Applications

 School, Office, Airport, Hospital, Hotel, Community, Transportation, Supermarket, Public Area;

Specifications



 Hardware & Technical Specifications

Display

8 inches

Overall Size

284(L)*140(W)*29(H)mm

Processor

High-performance 32-bit 4-core ARM chip

Flash

8GB

Measurement mode

Thermographic temperature measurement

Measuring Distance

0.3m-0.8m(recommended 0.5m)

Communication Method

TTL

Temperature Measurement Accuracy

±0.2℃~±0.5

TT Operating Temperature

-20-65℃ for

Storage Temperature

-40-65℃ for

Power Supply

3-5V

Electric Current

2mA

Baud Rate

9600/115200

Default Automatic Output Frequency

14Hz

Wavelength Range

8-14µm

Temperature Output

Real-time parallel output

Temparature Correction

Manual and automatic calibration

Alarm Threshold

Adjustable

Wiegand Interface

Support Wiegand 26 Wiegand 34

Other Interface

232; TTL; WIFI; RJ45; USB

Style

Symmetrical design, can be hang horizontally and vertically

 Camera





200w: USB connector, monocular wide dynamic, anti-glare

Ind Aperture 2.8, focal length 1.6mm, field angle 130°TV distortion<-5%, photosensitive area size 1/5-inch

Pixel:According to customer requirements,≥ 2 million pixels

Assembly angle: flat out

Image Sensor

6mm focal length, F2.4 aperture

Fill Light



LED:white light, RGB camera fill light, a control interface in SDK

NTR:850m infrared LED light, IR camera fill light source, with control interface in SDK

Operation System

Android 5.1.1 or above

Input Power

DC12V 2A

Backlight Recognition Iilluminance

<6000Lux

Effective Recognition Distance

0.5-4m

Working Environment

Indoor and outdoor(with rainproof frame),10-90%(non-condensing)

Operating Temperature

-20℃~+ 65

Card Reading Speed

0.2S

Matching

Matching

ID Card Reader

Support second-generation ID card recognition function, with control interface in SDK

LTE Function

Support 4G full Netcom Internet access function
