Vehicle Tag MT125

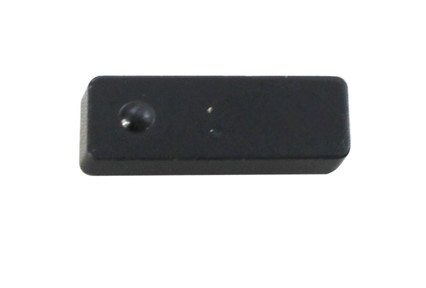

The vehicle tag is a lightweight identification unit designed for fuel inlet working environment. It works with MINGTE Wireless Nozzle Reader (MT123) & Wireless Receiver (MT124). It is secure, tamper-proof, easy to install, complies with ISO18000-6C protocol and has anti-theft protection function.

Feature Applications Specifications Download

Feature

●Light & secure

●Easy to install

●Complies with ISO18000-6C protocol

●Vandal-proof & with anti-theft protection function

Applications

●Automatic Vehicle Identification (AVI) System for fueling

●Fuel Dispensers, CNG Dispensers, Fuel Stations, CNG Stations, Fuel Company, CNG Company, Fleets, Service Provider

Specifications

CATEGORY	RFID/Contactless Vehicle Tag
READING/WRITING DISTANCE	1): 0-6m: Fixed reader/writer with 12dBi antenna 2): 0-4m: Fixed reader/writer with 7dBi antenna 3): 0-1.5m: Handheld device
PROTOCOL	ISO18000-6C(EPC Global Class1 Gen2)
WIRELESS COMMUNICATION FREQUENCY	920-925MHz
WORKING MODE	R/W
POLARIZATION MODE	Linear
STORAGE CAPACITY	TID: 64, EPC: 96, User: 512
DATA RATE	Forward: 40-160Kbits/s Backward: 40-640Kbits/s
DATA PROTECTION	Supports passwords modify, lock and destroy Supports read & write dual protection
DATA STORAGE TIME	Over 10 years(Memory erasable over 100K times)
WORKING TEMPERATURE	-20-+70°C
POWER SUPPLY	DC5V ± 5%
CURRENT	≤500mA
DIMENSIONS	23/25mm(L)x9mm(D)x3mm(H)
WEIGHT	Packing & accessories not included
REMARKS	Ceramic material, no drop from high place

Download
