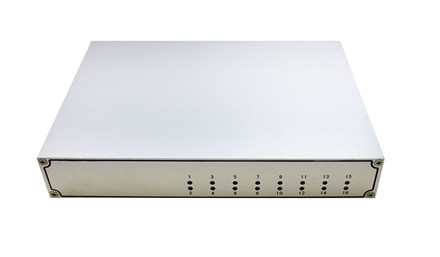

Wireless Receiver  MT124
Wireless Receiver MT124

The wireless receiver builds wireless network with RFID/contactless technology for AVI systems. It works with MINGTE Wireless Nozzle Reader (MT123) and MINGTE Vehicle Tag (MT125). It is flexible, secure and easy to install & setup & upgrade etc.

Feature


●Reliable, flexible and robust

●Easy to install, operate & upgrade

●Manages up to 16 wireless nozzle readers

●Software and functions updated

●Supports wireless & RS232 communication

●Supports Nozzle Reader address identification

Applications


Automatic Vehicle Identification (AVI) System for fueling

Fuel Dispensers, CNG Dispensers, Fuel Stations, CNG Stations, Fuel Company, CNG Company, Fleets, Service Provider

Specifications

CATEGORY

Wireless Receiver

COMMUNICATION RANGE WITH MT123

Approx 80m(Related to working environment)

COMMUNICATION

Communication with MINGTE wireless nozzle reader (MT123) and transmitting data to controlling system via RS-232

WORKING TEMPERATURE

-20-+55

WIRELESS COMMUNICATION FREQUENCY

433 MHz

POWER SUPPLY

DC5V ± 5%

CURRENT

≤500mA

DIMENSIONS(MM)

244.6mm(W)x162.8mm(D)x36mm(H)

WEIGHT

400g( packing & accessories not included)

REMARKS

With nozzle reader address identification function
