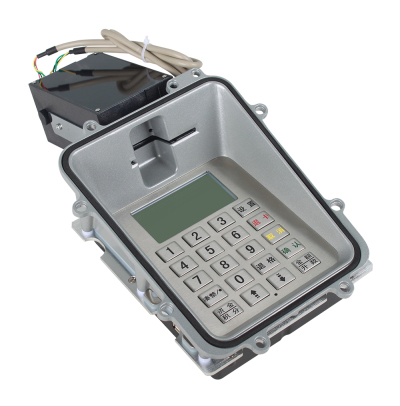

The ZT595 includes PIN Pad, LCD display and hybrid secure motorized card reader. These secure modules are designed to enable payment transactions in unattended and self-service environments such as fuel dispensers, CNG dispensers, vending machines, ticketing machines, on-street parking meters and store kiosks, as well as public transportation environments, including buses and rail lines etc.
The ZT595 series modules offer the highest degree of PCI PTS and EMV Level 1 and Level 2 Type Approvals for on-line and off-line PIN entry, as well as data encryption between the PIN Pad and secure motorized card reader. The PIN Pad provides high definition color display gives a clear and sharp image even under direct sunlight or dark conditions.
●High Stability and Reliability
Card retention
With full security shutter
Flexible and secure platform
COM / USB / Internet / Audio / I/O
PCI PTS 3.x certified, supports SRED
Emergency power-failure card release
Data encryption between modules
●Highly Ruggedized and Easy Integration
Plug-and-play
Standard USB connection
●Exceptional User Experience
Motorized card insertion
Wide card slot for easy user acceptance
High resolution screen
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines
CARD READER TYPE |
Motorized |
||
CARD TYPE |
Magnetic Cards Contact IC Cards Contactless Cards |
||
磁卡︱MAGNETIC CARD |
ISO7810/7811 |
Track 1 |
R |
Track 2 |
R |
||
Track 3 |
R |
||
IC CARD |
ISO/IEC 7816 |
R/W |
|
PSAM/ESAM |
|||
EMV |
Level 1 & L2 Certified |
||
CONTACTLESS CARD(OPTIONAL) |
ISO14443 TYPE A, B & MIFARE |
R/W |
|
LCD |
126*64 LCD, White Background, Black Words |
||
PINPAD |
Built-in Metal Pinpad(Encrypted & Unencrypted Options), 20 Keys, Dust & Water Proof |
||
DISPLAY |
English and Chinese |
||
LIFTTIME |
>500000 Cycles |
||
INTERFACE |
Card Reader: RS232 Pinpad: RS232 for Encrypted, FTP for Unencrypted LCD: FTP |
||
POWER SUPPLY |
DC12V, 2A |
||
WORKING TEMPERATURE |
-10℃-+55℃ |
||
DIMENSIONS(MM) |
280*180*80 |
||
WEIGHT |
Approx 1500g |
||
REMARK |
With Shutter |
