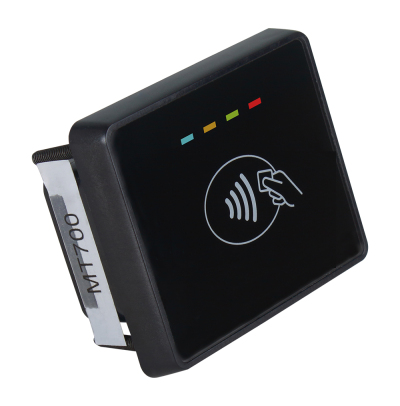

Contactless Card Reader Module MT700
Contactless Card Reader Module MT700





    MT700 is a contactless card / tag reader which can accept ISO14443 Type A / B and Mifare cards. It is designed to meet the demands of any unattended card payment transaction in sectors such as buses, vending machines, kiosk terminals and fuel pumps. It comes with data encryption between Encryption PIN Pad, integrated communications (USB device, RS-232, SAM) and accepted power from 5V DC via USB or RS-232. Featuring with high stability & reliability, highly ruggedized & easy integration and exceptional user experience.                                                           Supporting major contactless programs like Mastercard® PayPass™, American Express® ExpressPay™ and Visa® Contactless Programs, this product configuration is also a proven solution for the most demanding contactless EMV programs. This solution is fully compliant with the latest Near Field Communications (NFC) standard, allowing to make transactions with cell phones and other consumer electronic devices.

Feature



● High Stability and Reliability

Flexible and secure platform

USB Device / RS-232 / SAM

PCI PTS 5.x certified, supports SRED

Cooling fan and heating pad connector

●High Ruggedized & Easy Integration

Plug-and-play

Standard USB connection

Cutout compatible to EVA standard

Anti-vandalism enclosure withstanding an impact up to IK10

Durable, metal front plate & weatherproof enclosure withstanding IP65

● Exceptional User Experience

Illuminating contactless logo

Optical guidance by four LEDs

System wake-up upon card tap


Applications





Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines

Specifications



PROCESSOR

ARM A7, 500MHz

MEMORY

128MB Flash, 256MB SDRAM

CARD TYPE

Contactless Card





CONTACTLESS CARD

SO14443 TYPE A / B  & MIFARE, 13.56MHz

R/W

EMV

Level 1 & L2 Certified

AUDIO

Buzzer

INTERFACE

1 x USB Device1 x RS-2322 x SAM

POWER SUPPLY

5V DC via USB or RS-232

SECURITY

PCI PTS 5.x Certified Supports SRED

ENVIRONMENTAL

Operating Temperature: -30 ~ 70°C

Relative humidity: 5% to 95% RH Non-condensing

Storage Temperature: -30 ~ 70°C



DIMENSIONS(mm)



W

82

H

68

D

34

MECHANICS(CUTOUT)

W

72

H

44

IP PROTECTION RATE

IP65

SHOCK PROTECTION

IK10

WEIGHT

Approx 111g

REMARKS

Optical guidance by LEDs
