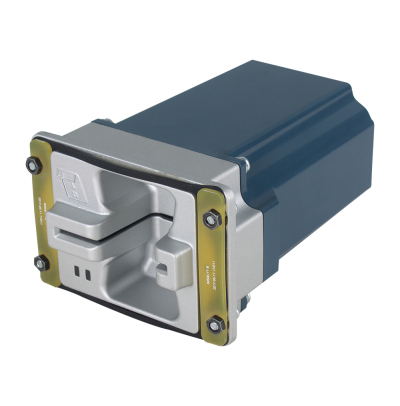

Hybrid Manual Card Reader MT500
Hybrid Manual Card Reader MT500



    MT500 is a robust manual hybrid secure card reader which can accept both magnetic strip and chip cards. It comes with data encryption between Encryption PIN Pad, integrated communications (USB device, RS-232, SAM) and accepted power from 5V DC via USB or RS-232. Featuring with high stability & reliability, highly ruggedized & easy integration and exceptional user experience.

Feature





● High Stability and Reliability

Card retention

With full security shutter

Flexible and secure platform

USB Device / RS-232 / SAM

PCI PTS 5.certified, supports SRED

Emergency power-failure card release

Cooling fan and heating pad connector

●High Ruggedized & Easy Integration

Plug-and-play

Standard USB connection

Cutout compatible to EVA standard

Anti-vandalism enclosure withstanding an impact up to IK10

Durable, metal front plate & weatherproof enclosure withstanding IP65

●Exceptional User Experience

Motorized or manual card insertion

Wide card slot for easy user acceptance

Proven hybrid card reader technology ensures easy customer guidance


Applications





Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines

Specifications



PROCESSOR

ARM A7, 500MHz

MEMORY

128MB Flash, 256MB SDRAM

CARD TYPE

Mag. & IC Cards

MAGNETIC CARD

ISO7810

/7811

Track 1

R

Track 2

R

Track 3

R

IC CARD

ISO 7816

R/W

SAM

R/W

EMV

Level 1 & L2 Certified

AUDIO

Buzzer

SHUTTER

Full

INTERFACE

1 x USB Device1 x RS-2322 x SAM

POWER SUPPLY

5V DC via USB or RS-232

SECURITY

PCI PTS 5.x Certified Supports SRED

ENVIRONMENTAL

Operating Temperature: -30 ~ 70°C

Relative Humidity: 5% to 95% RH Non-condensing

Storage Temperature: -30 ~ 70°C



DIMENSIONS(mm)



W

100

H

68

D

137

MECHANICS(CUTOUT)

W

73

H

61

IP PROTECTION RATE

IP34

SHOCK PROTECTION

IK10

WEIGHT

Approx 653g

REMARKS

Full Shutter
