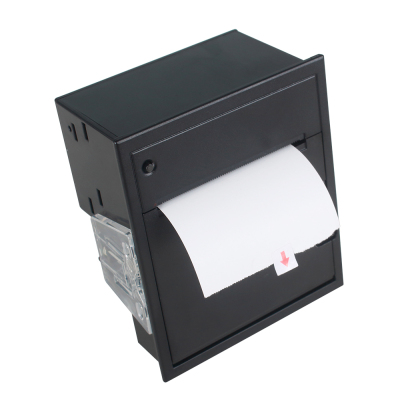

PT101 is a thermal industrial receipt printer with 58mm paper width and highly reliable sawtooth cutter. The printer is specially designed for fuel & gas station environment with explosion-proof certificate. It has sawtooth cutting, self-check, and error status notifications functions. It is widely used in various fields, including Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, and Vending Machines etc.
●Compact, high reliability and durability
●Thermal printing
●Printing width: 48mm
●With highly reliable sawtooth cutter
●With self-test and full status monitor function
●Various interface (customized)
●Dust-proof, environmental adaptability
●Specially designed for fuel & gas station environment
●With explosion-proof certificate for petroleum & chemical products
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines
|
PRINTING METHOD |
Thermal Printing |
|
PRINTING RESOLUTION |
384 dpi(8 dots/mm) |
|
PRINTING SPEED |
>10mm/sec(6.5V) |
|
PRINTING WIDTH |
48mm |
|
PRINTING PAPER |
External Diameter: 50mm Paper Width: 57.5±0.5mm Paper Thickness: 65±0.5um |
|
CHARACTER PER LINE |
12x24 dots(32 characters) |
|
EMULATION |
ESC/POS |
|
INTERFACE |
RS232 |
|
BAUD RATE |
9600/19200bps |
|
POWER SUPPLY |
DC5-7.5V ± 5% |
|
CURRENT |
2A(+7.5V) |
|
DATA BUFFER |
4K |
|
OPERATING SYSTEM |
Windows |
|
WORKING TEMPERATURE |
-40-+55°C |
|
PRINTING HEAD LIFE |
6000000 Character Lines |
|
WEIGHT |
Approx 215g |
|
REMARK |
With Explosion-proof Certificate |
