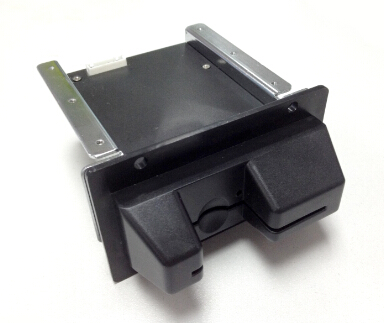

Manual card reader MT160

These are dip types of manual card readers. They excel in various fields, including ATMs, Kiosk Terminals, Self-service Terminals, Vending Machines, Fuel Dispensers, Gaming Machines, Electric Vehicle Charging Piles, POS terminals, Car Parking Payment Machines, Security and Access Control Terminals, and other ID Terminals etc.

Feature Applications Specifications Download

Feature

● Compact and light, high reliability and durability

● Custom design and various interface(RS232 or USB)

● Tamper and weather resistance

● Supplied with SIM, PSAM and ESAM(1 Slot)

● EMV Level 1 and PBOC approved

● ISO standards compliant

● Data encryption supported (DES)-optional

Applications

●ATMs/CDs, Kiosk Terminals, Payment Systems, Vending Machines, Fuel Dispensers

●Gaming Machines, Electric Vehicle Charging Piles, POS Terminals, other ID Terminals

●Parking Meters, Security and Access Control Terminals, Credit Authorization Terminals

Specifications

CATEGORY			Manual Dip
CARD TYPE			Magnetic and IC Cards
MAGNETIC STRIPE	ISO/IEC 7810/7811	Track 1	R
		Track 2	R	R
		Track 3		R
IC CARD	ISO/IEC 7816		R/W
	SIM/PSAM/ESAM		R/W
	EMV		Level 1 Approved

CONTACTLESS CARD(OPTIONAL)	ISO14443 Type A, B		R/W
Shutter			Full(Optional)
INTERFACE			RS232C or USB
POWER SUPPLY			+5V DC
DIMENSIONS(mm)	W		100
	D		114.5
	H		68
REMARKS			With multi bezel(Optional)
