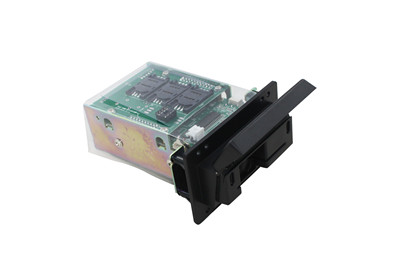

Vehicle Charging Reader MT318-610

This product is a card reading equipment with integrated IC card reading and has options for flexible circuit interface according to the requirements of the customers. This model is safe and reliable, has good dust-proof function and automatic card lock and ejection function. This model is specially designed for charging and financial applications, it is easy and cost-effective for secondary development. It is widely used in industrial industries, such assuch as PetroChina、sinopec、telecom、financial、transportation,etc.This product has passed the EMV and PBOC3.0 certification.

Feature Applications Specifications Download

Feature

●Support contactless IC card (ISO14443 TYPE A & B)

● Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)

●Support contact IC card (ISO7816)

●Support PSAM & ESAM card (ISO7816), optional PSAM and ESAM

●Supplied with 4 SIM card slots (3 PSAM, 1ESAM)

●With automatic card lock & eject function, clog-proof, dust-proof, environmental adaptability

●Customized for compatibility with application flow of charging points from China Southern Power Grid or State Grid

●Customized for charging or financial applications, easy and cost-effective for secondary development

●Support contactless IC card inserting to avoid card swiping failure

●

Shock-proof design to avoid card ejection by external force

●With multi bezel (Optional)

Applications

●Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers

●Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

Specifications

CARD TYPE		Contact IC Cards Contactless IC Cards
IC CARD	ISO/IEC 7816	R/W
	PSAM/ESAM
	EMV	Level 1 Compliant
CONTACTLESS CARD	ISO14443 Type A & B & Mifare	R/W
LIFETIME		>500000 Cycles
CARD LOCK & EJECT MECHANISM LIFETIME		>500000 Cycles
INTERFACE		RS-232
POWER SUPPLY		DC12V ± 5%
CURRENT		Current: ≤30mA Max: ≤120mA
WORKING TEMPERATURE		-40-+65°C
WEIGHT		Approx 288g
REMARK		With shutter & multi bezel(optional)
