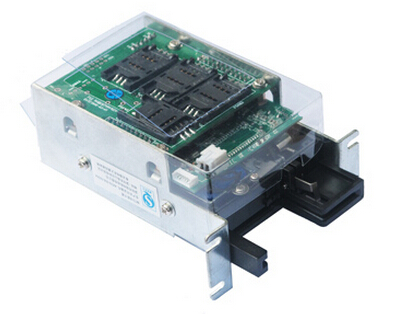

Industrial Card Reader MT318-118

This product is a card reading equipment with integrated IC card reading and has options for flexible circuit interface according to the requirements of the customers. This model is safe and reliable, has good dust-proof function and automatic card lock and ejection function. It is widely used in industrial industries, such as PetroChina、sinopec、telecom、financial、transportation,etc.This product has passed certification of EMV and PBOC3.0

Feature Applications Specifications Download

Feature

●Compact & light, high reliability & durability

●Support contact IC card (ISO7816)

●Support contactless IC card (ISO14443 TYPE A & B)

●With automatic card lock & eject function, clog-proof, dust-proof, good environmental adaptability

●Shock-proof design to avoid card ejection by external force

●Card ejection in emergency

●Power failure protection function (optional)

●Various interface (customized)

●With multi bezel (Optional)

Applications

●Fuel Dispensers, CNG Dispensers, Electric Vehicle Charging Points/Piles & Stations

●ATMs, CDMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

Specifications

CATEGORY		Manual Dip
CARD TYPE		Contact IC Cards Contactless IC Cards
IC CARD	ISO/IEC 7816	R/W
	EMV	Level 1 Compliant
CONTACTLESS CARD	ISO14443 Type A & B &Mifare	R/W
LIFETIME		>500000 Cycles
CARD LOCK & EJECT MECHANISM LIFETIME		>500000 Cycles
INTERFACE		RS-232
POWER SUPPLY		DC12V ± 5%
CURRENT		Current: ≤50mA Max: ≤800mA
WORKING TEMPERATURE		-40-+65°C
WEIGHT		Approx 297g
REMARK		With shutter & multi bezel(optional)
