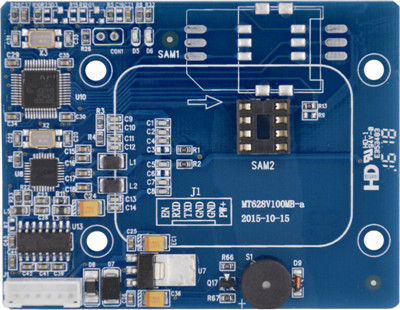

These are custom design contactless card readers by Mingte card related technologies, which excel in various fields, including Kiosk Terminals, Pay Systems, POS terminals and other ID Terminals etc.
●Support contactless IC card (ISO14443 TYPE A)
●Support S50 & S70 (Mifare)
●Support PSAM & ESAM card (ISO7816), optional PSAM and ESAM
●Supplied with 2 card slots (PSAM or ESAM)
●Customized for compatibility with application flow of charging points from China Southern Power Grid or State Grid
●Customized for charging or financial applications, easy and cost-effective for secondary development
●Communication interface compatible with China State Grid standard, various corresponding and custom design
●Software updated via RS232 supported
●Carefully-designed antenna size for most installation design
●Various installation dimensions design, temperature-proof
●Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers
●ATMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
●POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals
|
CARD TYPE |
Contactless IC Cards SIM Cards, PSAM Cards, ESAM Cards |
|
|
CONTACTLESS CARD |
ISO14443 Type A & Mifare |
R/W |
|
IC CARD |
SIM/PSAM/ESAM |
R/W |
|
EMV |
|
|
|
CARD READING DISTANCE |
4 |
|
|
INTERFACE |
RS-232/TTL(uart) |
|
|
COMMUNICATION FREQUENCY |
9600/38400/57600/115200bps |
|
|
ANTENNA |
PCB Antenna |
|
|
FREQUENCY |
13.56MHz |
|
|
COMMUNICATION SPEED |
106Kbit(212Kbit & 424Kbit pps commands optional) |
|
|
SECONDYARY DEVELOPMENT |
VC, Linux |
|
|
OPERATING SYSTEM |
Windows 98, Me, 2K, XP, 2003, |
|
|
DATA STORAGE CAPACITY |
Standard capacity inside reader: 4k bytes |
|
|
STATUS DISPLAY |
LED indication light |
|
|
POWER SUPPLY |
DC5V ± 5% |
|
|
CURRENT |
Current: ≤25mA(5V) Max: ≤120mA(5V) |
|
WORKING TEMPERATURE |
-40-+ |
|
WEIGHT |
Approx |
