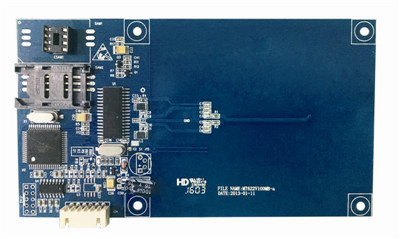

Contactless Card Readers MT622

These are custom design contactless card readers by Mingte card related technologies, which excel in various fields, including Kiosk Terminals, Pay Systems, POS terminals and other ID Terminals etc.

Feature Applications Specifications Download

Feature

●Support contactless IC card (ISO14443 TYPE A & B)

●Support PSAM & ESAM card (ISO7816), optional PSAM and ESAM

●Supplied with 2 card slots (PSAM or ESAM)

●Customized for compatible with application flow of charging points from China Southern Power Grid or State Grid

●Various interface and custom design

●Software updated via RS232 supported

Applications

●Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers

●Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

●POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals

Specifications

CATEGORY		Contactless
CARD TYPE		Contactless IC Cards SIM Cards, PSAM Cards, ESAM Cards
CONTACTLESS CARD	ISO14443 Type A & B &Mifare	R/W
IC CARD	SIM/PSAM/ESAM	R/W
	EMV	Level 1 Compliant
CARD READING DISTANCE		4-8cm(Related to cards)
INTERFACE		RS-232
POWER SUPPLY		DC 5V ± 5%
CURRENT		Current: ≤60mA(12V) Max: ≤150mA(12V)
WORKING TEMPERATURE		-40-+65°C
WEIGHT		Approx 40g

Download

Contactless Card Readers-MT318-622 Spec-1410.pdf
