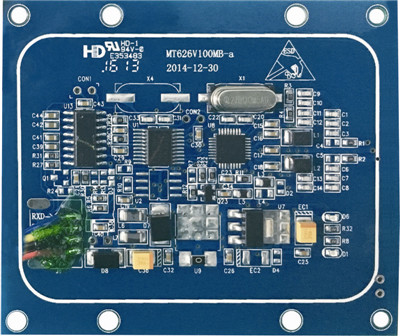

Contactless Card Readers MT626

These are custom design contactless card readers by Mingte card related technologies, which excel in various fields, including Kiosk Terminals, Pay Systems, POS terminals and other ID Terminals etc.

Feature Applications Specifications Download

Feature

●Support contactless IC card (ISO14443 TYPE A)

●Support S50 & S70 (Mifare)

●Various interface and custom design

●Software updated via RS232 supported

●Carefully-designed antenna size for most installation design

●Various installation dimensions design, temperature-proof

●Optional IP54 plastic enclosure

Applications

●Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers

●Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

●POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals

Specifications

CATEGORY		Contactless
CARD TYPE		Contactless IC Cards
CONTACTLESS CARD	ISO14443 Type A & Mifare	R/W
CARD READING DISTANCE		4-8cm (Related to cards)
INTERFACE		RS-232/TTL(uart)
COMMUNICATION FREQUENCY		9600/38400/57600/115200bps
ANTENNA		PCB Antenna
FREQUENCY		13.56MHz
COMMUNICATION SPEED		106Kbit(212Kbit & 424Kbit pps commands optional)
SECONDYARY DEVELOPMENT		VC, Linux
OPERATING SYSTEM		Windows 98, Me, 2K, XP, 2003, Vista and Linux
DATA STORAGE CAPACITY		Standard capacity inside reader: 4k bytes
STATUS DISPLAY		LED indication light for power & communication status
POWER SUPPLY		DC5V ± 5%
CURRENT		Current: ≤25mA(5V) Max: ≤130mA(5V)
WORKING TEMPERATURE		-40-+65°C
WEIGHT		Approx 15g
