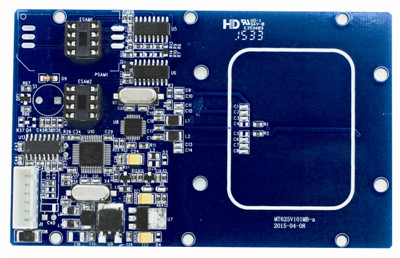

Contactless Card Readers MT625
Contactless Card Readers MT625

These are custom design contactless card readers by Mingte card related technologies, which excel in various fields, including Kiosk Terminals, Pay Systems, POS terminals and other ID Terminals etc.

Feature

●Support contactless IC card (ISO14443 TYPE A & B)

●Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)

●Support 2 PSAM & ESAM card (ISO7816), optional PSAM and ESAM

Customized for compatible with application flow of charging points from China Southern Power Grid or State Grid

●Customized for related or financial applications, easy and cost-effective for secondary development

Various corresponding and custom design

Software updated via RS232 supported

●Carefully-designed antenna size for most installation design

●Various installation dimensions design, temperature-proof

Applications


Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers

ATMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems

POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals

Specifications



CATEGORY

Contactless

CARD TYPE

Contactless IC Cards

SIM Cards, PSAM Cards, ESAM Cards

CONTACTLESS CARD

ISO14443 Type A & B & Mifare

R/W

IC CARD

SIM/PSAM/ESAM

R/W

EMV

Level 1 Compliant

CARD READING DISTANCE



4-8cm and 106Kbit (Related to cards and  installation environment)

INTERFACE

RS-232/TTL(uart)

BAUD RATE

9600/38400/57600/115200bps

ANTENNA

PCB Antenna

FREQUENCY

13.56MHz

COMMUNICATION SPEED

106Kbit(212Kbit & 424Kbit pps commands optional)

SECONDYARY DEVELOPMENT

VC, Linux

OPERATING SYSTEM

Windows 98, Me, 2K, XP, 2003, Vista and Linux

DATA STORAGE CAPACITY

Standard capacity inside reader: 4k bytes

STATUS DISPLAY

LED indication light & buzzer

POWER SUPPLY

DC5V or +8-15V± 5%

CURRENT

Current: ≤25mA(5V)

Max: ≤130mA(5V)

WORKING TEMPERATURE

-40-+65°C

WEIGHT

Approx 32g
