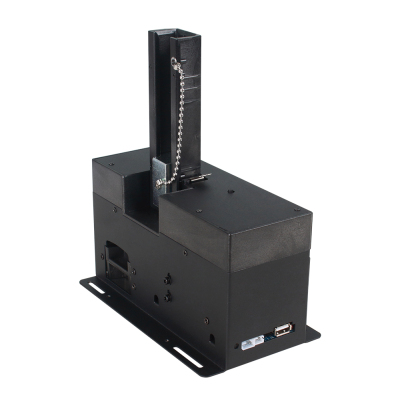

MT168 is designed for SIM card reading & writing and dispensing. SDK (includes protocol) will be provided for self-service terminals software development. It is widely used for SIM card dispensing equipments and with following main features.
●Compact, high reliability and durability
●Designed for SIM card reading & writing
●Support SIM card (ISO7816)
●With PC/SC, USB & RS-232 interface
●Cards hopper capacity: 120pcs (card thickness: 0.76mm)
●With error card recycling and card-low indication
●Various corresponding and custom design
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines
|
CARD TYPE |
SIM Card |
|
|
CARD SPECIFICATIONS |
Size: 25x15mm Thickness: 0.76mm |
|
|
IC CARD |
SIM Card |
R/W |
|
EMV |
Level 1 Compliant |
|
|
CARD DISPENSING SPEED |
>1pcs/s |
|
|
CARD RECYCLING HOPPER CAPACITY |
18-22pcs |
|
|
CARD HOPPER CAPACITY |
120pcs |
|
|
LIFETIME |
>500000 Cycles |
|
|
INTERFACE |
RS-232/USB |
|
|
POWER SUPPLY |
DC24V ± 5% |
|
|
CURRENT |
Max Current: 1.5A(24V) |
|
|
WORKING TEMPERATURE |
-40-+50°C |
|
|
WEIGHT |
Approx 1000g |
|
|
REMARK |
Support Online IAP download |
|
