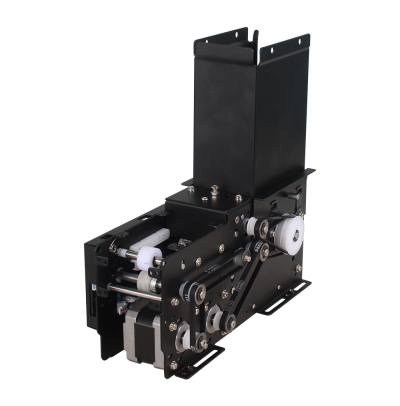

Based on reliable structure design and massive integrated circuit, MT166 specially supports automatic card dispensing (collecting) which function controlled card dispensing & collecting and RF card operation. Transmitting power by stepper motor, properties with high speed, high stability, highly reliability and long working lifetime, MT166 can be widely used in parking management systems, automatic, card vending machines, ticket vending machines, highway card, dispenser systems, centralized card dispensing & collecting and other applications.
●Compact, high reliability and durability
●Support contactless IC card (ISO14443 TYPE A & B)-optional
●Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)
●With two stepper motors and lifetime over 2 million cycles.
●Designed with shutter, dust and water proof
●Adjustable card thickness & dispensing speed
●Extension stackable cards hopper capacity: 180pcs (card thickness: 0.8mm)
●With error card recycling and card-low indication
●With multi bezel (Optional)
●Various corresponding and custom design
●Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines
|
CARD TYPE |
Contactless IC Cards(Optional) |
|
|
CARD SPECIFICATIONS |
Size: 54x86mm Thickness: 0.3-2.0mm |
|
|
ISO14443 Type A & B & MIFARE |
R/W |
|
|
CARD DISPENSING SPEED |
>1pcs/s |
|
|
CARD RECYCLING HOPPER CAPACITY |
>25pcs |
|
|
CARD HOPPER CAPACITY |
180pcs |
|
|
LIFETIME |
>2000000 Cycles |
|
|
INTERFACE |
RS-232/I/O TTL |
|
|
POWER SUPPLY |
DC24V ± 5% |
|
|
CURRENT |
Max Current: 2A(24V) |
|
|
WORKING TEMPERATURE |
-40-+65°C |
|
|
WEIGHT |
Approx 2120g |
|
|
REMARK |
With Sutter & Multi Bezel(Optional) |
|
