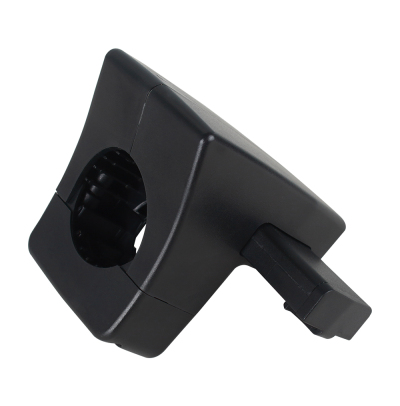

The Wireless Nozzle Reader reads MINGTE AVI vehicle tag (MT125) info with RFID/contactless technology. It then uploads the tag info to petro station controlling systems over wireless receiver (MT124) for refueling authorization. It is dust-proof, water-proof and explosion-proof (certificate No.: CE15.2140), and can work under fuel & gas environment.
●Reliable, secure and robust, easy to install, service & upgrade
●Vandal-proof, water-proof and explosion-proof (certified)
●Supports RFID/Contactless tag identification
●Supports wireless communication
●Low power consumption indication
●Self-contained & operated with replaceable batteries
●Designed for Fuel & CNG stations
●Automatic Vehicle Identification (AVI) System for fueling
●Fuel Dispensers, CNG Dispensers, Fuel & CNG Stations, Fuel & CNG Company, Fleets, Service Provider
|
READING DISTANCE |
≤150mm(Working Power: 4.2 V) |
|
WORKING TIME |
72 Days(Calculated by 1 Time Fueling with 3 Minutes and 100 Times Fueling per Day) |
|
WORKING TEMPERATURE |
-20-+55°C |
|
TAMPER-PROOF STANDARD & GRADE |
Standard: GB/T15279 5.20.4 Grade: IK10 |
|
WIRELESS COMMUNICATION FREQUENCY
|
433 MHz |
|
POWER SUPPLY |
DC4.2V ± 5% Powered by Rechargeable Lithium Battery) |
|
DIMENSIONS
|
69.9mm(W)x100.95mm(D)x84.7mm(H) |
|
WEIGHT |
200g Packing & Accessories not Included |
|
REMARKS |
With Low Power Indication for Battery |
