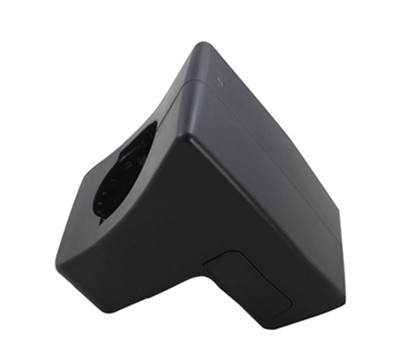

Wireless Nozzle Readers  MT123
Wireless Nozzle Readers MT123

The Wireless Nozzle Reader reads MINGTE AVI vehicle tag info with RFID/contactless technology. It then uploads the tag info to petro station controlling systems over wireless receiver (MT124) for refueling authorization. It is secure & explosion-proof, reliable & robust, easy to install & service and waterproof etc.

Особенности



●Reliable, secure and robust

●Easy to install, service & upgrade

●Vandal-proof, water-proof and explosion-proof(certified)

●Supports RFID/Contactless tag identification

●Supports wireless communication

●Low power indication

●Self-contained & operated with replaceable batteries

●Designed for Fuel & CNG stations

Применении



Automatic Vehicle Identification (AVI) System for fueling

Fuel Dispensers, CNG Dispensers, Fuel Stations, CNG Stations, Fuel Company, CNG Company, Fleets, Service

Спецификации



CATEGORY

RFID/contactless Reader

READING DISTANCE

150mm( working power: 4.2 V)

WORKING TIME

72 days( calculated by 1 time fueling with 3 minutes and 100 times fueling per day)

WORKING TEMPERATURE

-40-+70°C

 TAMPER-PROOF STANDARD & GRADE

Standard: GB/T15279 5.20.4  Grade: IK10

WIRELESS COMMUNICATION FREQUENCY

433 MHz

POWER SUPPLY

DC4.2V± 5%

DIMENSIONS(MM)

69.9mm(W)x100.95mm(D)x84.7mm(H)

WEIGHT

200g  Packing & accessories not included

REMARKS

With Low power indication for batter replaceable batteries
