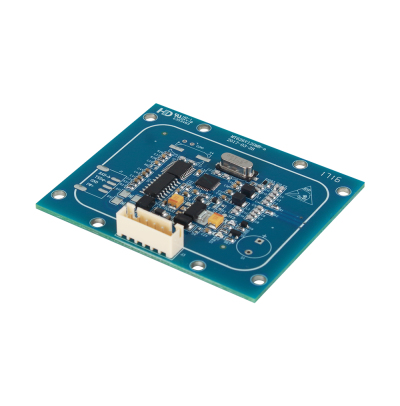

Считыватель бесконтактный смарт-карт
Считыватель бесконтактный смарт-карт

Серия считывателей бесконтактных карт MINGTE MT628 работает с картами стандарта ISO14443 и ISO7816, оснащена одним слотом для SAM карт (опциальна PSAM карта или PSAM карта). Она широко применяется в зарядных станциях, платежных терминалах, платежных терминалах самообслуживания на АЗС и ГЗС, парковочных системах, билетных автоматах, торговых автоматах и т. п.

Особенности

●Support contactless IC card (ISO14443 TYPE A)

●Support S50 & S70 (Mifare)
●Support PSAM & ESAM card (ISO7816), optional PSAM and ESAM
●Supplied with 2 card slots (PSAM or ESAM)
●Customized for compatibility with application flow of charging points from China Southern Power Grid or State Grid
●Customized for charging or financial applications, easy and cost-effective for secondary development
●Communication interface compatible with China State Grid standard, various corresponding and custom design
●Software updated via RS232 supported
●Carefully-designed antenna size for most installation design
●Various installation dimensions design, temperature-proof

Применении

Electric Vehicle Charging Points, Kiosk Terminals, Fuel Dispensers, CNG Dispensers, Parking Systems, Ticketing Machines, Vending Machines, ID Terminals

Спецификации



CARD TYPE

SIM Cards, PSAM Cards, ESAM Cards

CONTACTLESS CARD

ISO14443 Type A & MIFARE

R/W

IC CARD

SIM/PSAM/ESAM

R/W

EMV

Level 1 Compliant

CARD READING DISTANCE

4-8cm and 106Kbit (Related to Cards and  Installation Environment)

INTERFACE

RS-232/TTL(uart)

COMMUNICATION FREQUENCY

9600/38400/57600/115200bps

ANTENNA

PCB Antenna

FREQUENCY

13.56MHz

COMMUNICATION SPEED

106Kbit(212Kbit & 424Kbit pps Commands Optional)

SECONDYARY DEVELOPMENT

VC, Linux

OPERATING SYSTEM

Windows 98, Me, 2K, XP, 2003, Vista and Linux

DATA STORAGE CAPACITY

Standard Capacity inside Reader: 4k bytes

STATUS DISPLAY

LED Indication Light for Power &  Communication Status

POWER SUPPLY

DC5V ± 5%

CURRENT

Current: ≤25mA(5V)

Current: ≤120mA(5V)

WORKING TEMPERATURE

-40-+65°C

WEIGHT

15g | Approx 15g

Скачать
