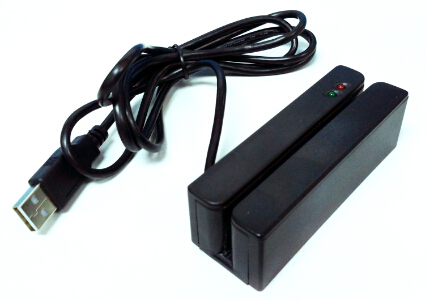

The MT750 3-track Magnetic Swipe Reader (MSR) is the universal choice for reading magnetically encoded cards. Featuring Plug and Play USB interface, the MT750 is ready to go out of the box. Smooth bi-directional operation ensures a high success rate with every swipe.
●Bi-direction read capability, baud rate adjustable
●Various interface: USB, RS232, TTL and keyboard
●Power supplied via PC, can be customized for character control
●DLL/OCX SDK for Windows98/ME/NT/2000/XP
●ISO 7811 standards compliant
● With LEDs, buzzer and plastic cover
●Sleeping mode for power saving
●POS Terminals, Payment Collections, Credit Card Data Collections, other ID Terminals
●Government, Driver License, Health Card, Identification, Credit Authorization Terminals
●Bank Counters, Card Verifications, Events, Trade Shows, Any Movable Date Collections
|
CATEGORY |
Manual Swipe |
||
|
CARD TYPE |
Magnetic Cards |
||
|
MAGNETIC |
ISO/IEC 7810/7811 |
Track 1 R |
Recording density: 210 BPI Capacity: 79 characters(7 bit code) |
|
Track 2 R |
Recording density: 75 BPI Capacity: 40 characters(7 bit code) |
||
|
Track 3 R |
Recording density: 210 BPI Capacity: 107 characters(7 bit code) |
||
|
POWER |
Supplied via PC |
||
|
CARD OPERATION SPEED |
10 ~ 180 cm/sec |
||
|
DECODING METHOD |
F/2F |
||
|
OPERATION TEMPERATURE |
-10 ~ 50c |
||
|
Life time of head |
Approx. 300,000 passes |
||
|
BAUD RATE |
2400 bps,9600 bps,19200 bps |
||
|
CABLE LENGTH |
120cm |
||
|
DIMENSIONS(mm) |
L: 90, D:28, H:27 |
||
|
REMARKS |
Model No. description: 1): Interface: R: RS232, U: USB, T: TTL, K: Keyboard, 2): Track: 04=1&2 tracks, 05: 2&3 tracks, 06: 1&2&3 tracks |
||
