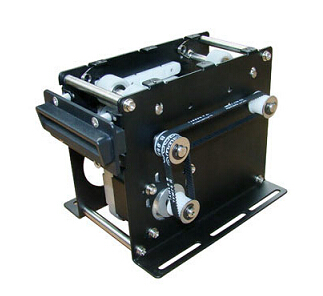

Card collector MT163

The enhancement type card collector MT163 designed of Using large scale integrated circuit with reliablestructure, this product specially designed for automatic card collecting, It has properties with high speed、 high stability、high reliability ,It Can be widely used in many occasions such as parking management system、 automatic card vending machine and ticket vending machine、highway card dispenser system、centralized card dispensing and collecting.

Feature Applications Specifications Download

Feature

Elastic transmission structure design，
Applicable to a variety of thickness cards.
Effectively prevent the dust and rain.
Stop card position can extend RF antenna，
Improved for RFID card reader，card station can stay five seconds(customizable)
Using stepper motor driven, life of collecting cards can reach two million times.

Applications

Parking charging system
City card system engineering
Highway charging system
Attractions tickets recovery

Specifications

1、card support：Size 54×86mm thickness 0.76-2.0mm

2、recovery card device：

The service life of the motor：over two million times of operation.

3、power supply：

working voltage：DC24V

maximum current：2.0A Max/24V

4、enviromental parameter：

working temperature：-40℃～+60℃

Storage temperature：-40℃～+85℃

Relative humidity： 0～90%RH(No condensing) Storage humidity：≤90%RH（No condensing）

5、 dimensions： 133mm (long) * 101.5(wide)*105 (high)(Max)
